Lifelines
Rothoblaas horizontal, vertical and rail-based lifelines to secure work at height on roofs or façades.
Rothoblaas horizontal, vertical and rail-based lifelines to secure work at height on roofs or façades.
Horizontal lifeline system on a stainless steel cable (AISI 304/316, Ø8 mm, 7x7 strand) with EN AW 6082 aluminium fittings. The SPEAREVO tensioner-absorber allows support spacing of up to 15 m. Full range of terminal (PATROLTERM), intermediate (PATROLINT) and sliding (SLIDE1/2) elements for straight or angled runs.
Typical use : Use case: pitched or flat roofs, facades, and industrial maintenance areas requiring a continuous anchor line for multiple operators during work at height.

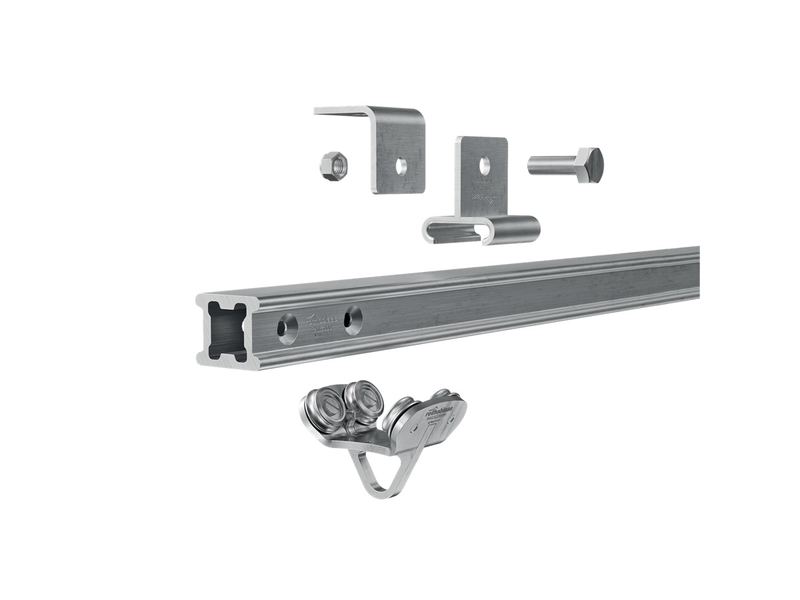

Rigid aluminium rail-based fall arrest and rope access system, with a sliding trolley featuring two rollers and a pivoting attachment point. Usable in fall-arrest configuration (bracket spacing up to 6 m, 4 simultaneous operators) or rope-suspended work (2 m spacing, 2 operators per span). Minimum bend radius of 200 mm, bend angles from 90° to 180°, custom RAL colours and anodizing available.
Typical use : Use case: window cleaning and rope access on facades, industrial maintenance on walkways, and any layout requiring curves (rails, complex structures).
Vertical lifeline on AISI 316 stainless cable (Ø8 mm, 7x7) for fixed ladders or facades (mountable on wood, steel or concrete, 0-15° angle tolerance). Two fall-arrester technologies: the fully automatic VERTSLIDEPAS with a lifetime metal energy absorber, or the semi-automatic manually-operated VERTSLIDE. Upper anchor VERTOP17 (1.7 m) and lower anchor VERTBASE.
Typical use : Use case: climbing caged ladders on silos, chimneys and towers, or vertical facade access for industrial maintenance.

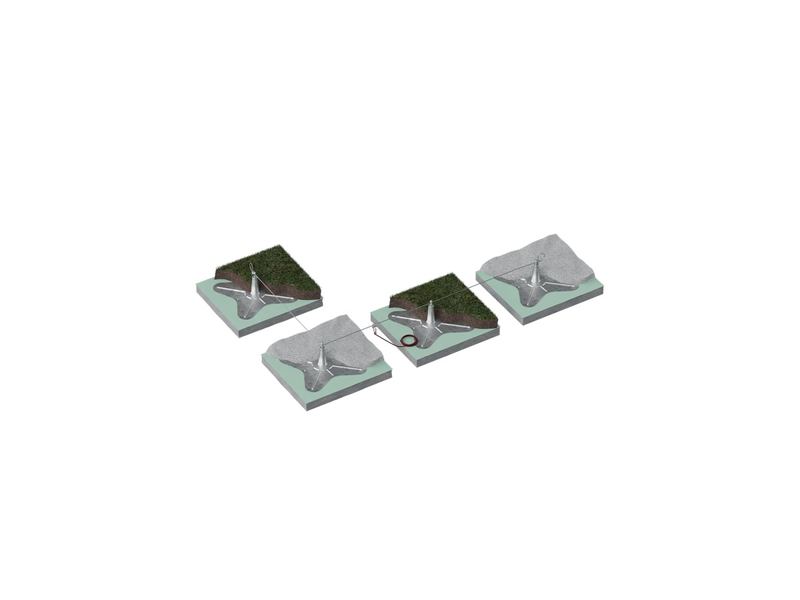

Eco-designed range for green roofs requiring no penetration of the waterproofing membrane (no thermal bridges, membrane integrity preserved). AISI 316 stainless cable (Ø8, 7x7), AISI 316L terminal/intermediate elements (GREENSUP), locking head (GREENHEAD) and a glass-fibre reinforced tarpaulin (GREENCARPET, 3x3 m) ballasted for anchoring. Certified to EN 795:2012 class C, CEN/TS 16415:2013 and UNI 11578:2015 class C.
Typical use : Use case: green roofs and roof terraces where any penetration of the waterproofing is prohibited, particularly on commercial or residential buildings with environmental certification.

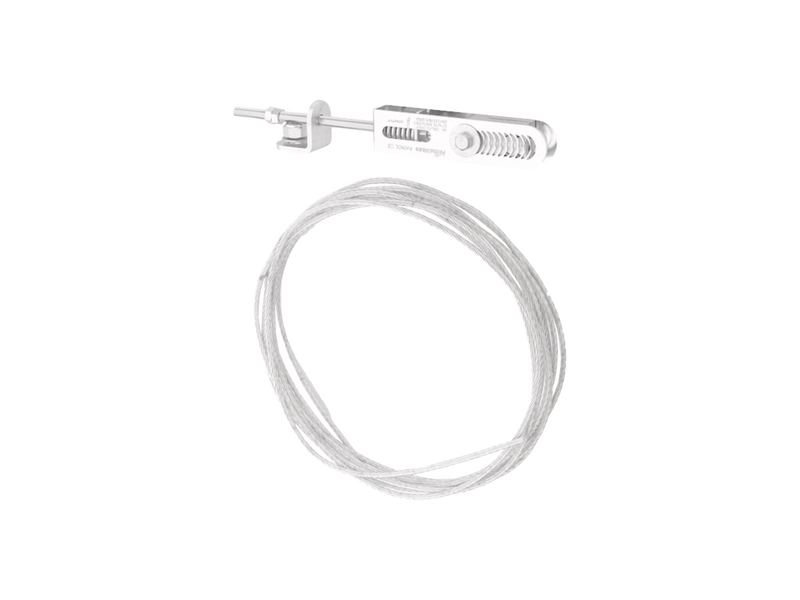

Complete ready-to-install kit for a 15-metre PATROL horizontal lifeline: 15 m stainless cable, 2 SPEAR tensioner-absorbers and 2 PATROLTERM terminals included. Simplified solution for installers, supplied with declarations of conformity in multiple languages (FR, EN, DE, IT, PT, RU, ES).
Typical use : Use case: construction sites and small roofs where a standard 15 m lifeline is sufficient, for quick installation without custom sizing.
Describe your needs, and we'll get back to you with a tailored proposal.
