Anchor Points
Rothoblaas anchor points for roofs, façades and steel structures, certified for work at height.
Rothoblaas anchor points for roofs, façades and steel structures, certified for work at height.
Simple, extremely robust and reliable single anchor point, available in zinc-plated steel (grey RAL7032 or high-visibility yellow RAL1016) or AISI 316 stainless steel. Suitable for one operator in suspension or up to 3 operators for fall protection. Dimensions: d1 17 mm, B 65 mm, H 56 mm, L 115 mm. Compliant with EN 795:2012 class A, CEN/TS 16415:2013, UNI 11578:2015 A, ANSI Z359.18/A and AS/NZS 5532:2013 / 1891.4:2009.
Typical use : Anchoring on timber, concrete or steel for industrial maintenance, rope-access work on wind turbines, facades and flat or pitched roofs.

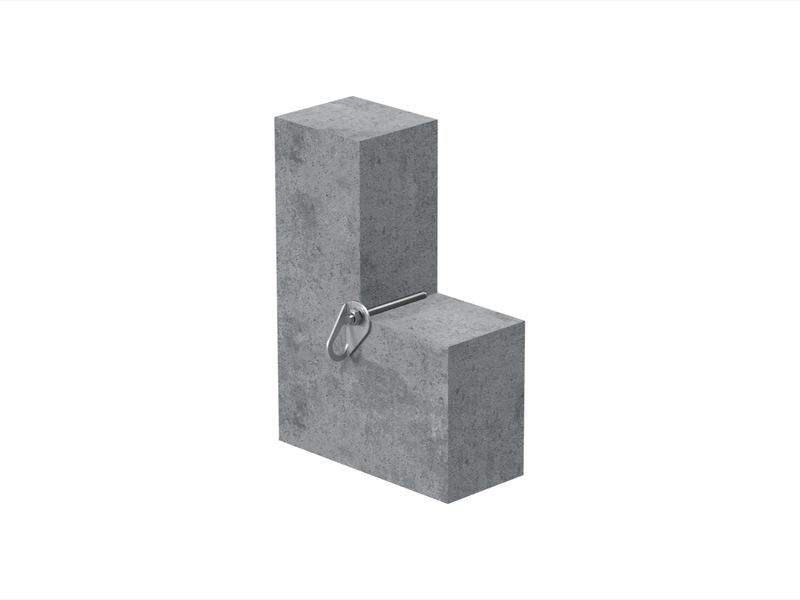

Very compact and lightweight anchoring device providing a single-operator fixing point. Ideal as an anchor for the safety rope during rope-access work. Available in a concrete version and a steel version. Compliant with EN 795:2012 class A.
Typical use : Discreet corner anchor points on walls or structures for facade work, industrial maintenance and occasional work at height.

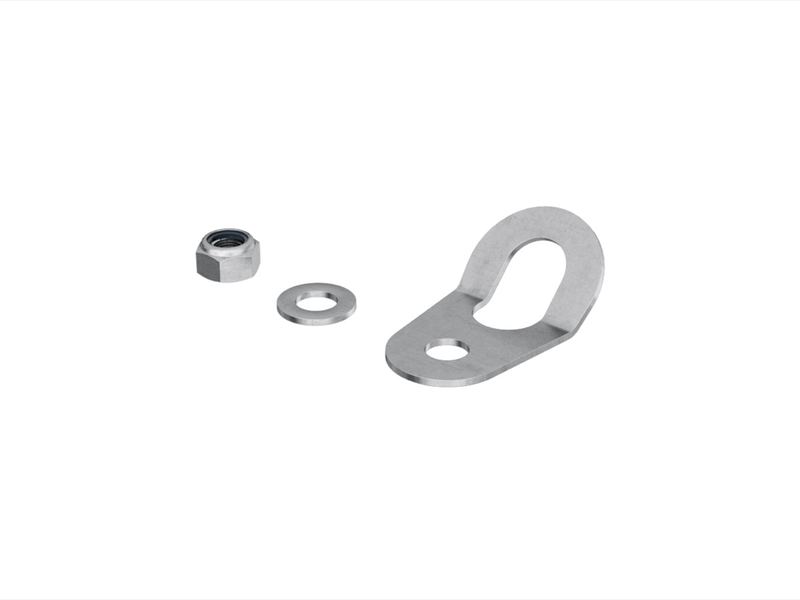

Universal anchor point compatible with all Rothoblaas supports (TOWER, TRAPO, SHIELD, SHIELD 2.0, SEAMO, COPPO, BLOCK, SIANK FOUR), installable on timber, concrete, sheet metal and green or non-perforable flat roofs. Available in AISI 304 (AOS01) or AISI 316 (AOS01A4) stainless steel. Dimensions: d1 17 mm, B 60 mm, L 98 mm. Compliant with EN 795.
Typical use : Modular fixing for new roof construction and renovation projects, compatible with a wide range of accessories in the fall-protection range.

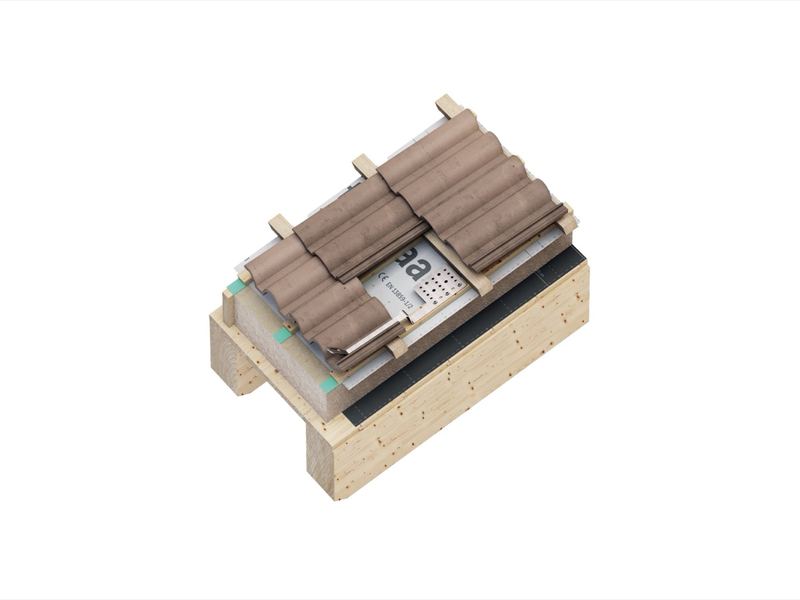

AISI 304 (1.4301) stainless steel anchor point for timber and concrete roofs, ensuring safety during operations on pitched roofs. Available in 3 heights (20, 50 and 100 mm) to adapt to different insulation thicknesses, all with B 132 mm and L 520 mm. Compliant with EN 795:2012 class A and UNI 11578:2015 A. Designed for one operator.
Typical use : Through-fixed anchor on pitched timber or concrete roofs, suited to insulated roof coverings (tiles, slates) for construction and roof maintenance work.

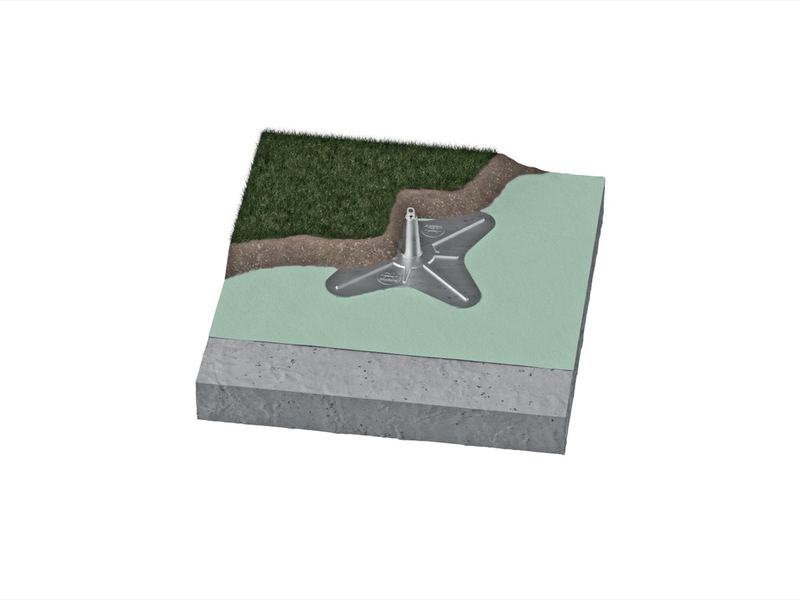

Non-penetrating ballasted system requiring no roof drilling, avoiding thermal bridges and preserving the structure's waterproofing. Consists of an AISI 316L (1.4404) stainless steel anchor device (300 mm high) and a 3000 x 3000 mm glass-fibre reinforced polyester (GFRP) fall-protection mat. Load: 1 operator with ballast > 80 kg/m², 2 operators with ballast > 200 kg/m². Compliant with EN 795:2012 class A and CEN/TS 16415:2013.
Typical use : Flat green roofs or gravel roofs that cannot be drilled, for industrial maintenance and construction on buildings with waterproofing membranes.
